For commercial growers of high-value crops—such as wine grapes, almonds, cherries, and citrus—a single late-spring frost event can wipe out an entire season's harvest in just four hours. During early bud break and flowering, floral tissue freezes at temperatures between -1.5°C and -2.2°C.

Yet, many growers make a lethal error: relying strictly on standard dry-bulb air temperature thermometers to activate frost protection. Discover how multi-parameter microclimate stations automate active freeze defense within our smart agricultural weather monitoring systems.

1. Radiation Frost vs. Advection Freeze

Effective frost defense begins with identifying the meteorological mechanism driving the sub-zero event:

• Radiation Frost (Clear, Calm Nights): Ground heat radiates rapidly into an unobstructed night sky under calm wind conditions (< 1.5 m/s). A sharp thermal inversion develops: cold, dense air pools near the orchard floor, while warmer air floats 10 to 20 meters aloft.
• Advection Freeze (Windy Fronts): A large-scale polar air mass sweeps across the region with moderate-to-high winds (> 4 m/s) and sub-freezing dry air. Inversion layers do not form, rendering frost fans ineffective.

2. The Critical Role of Wet-Bulb Temperature ($T_w$) in Sprinkler Defense

Many commercial orchards utilize overhead or under-canopy sprinklers for frost protection, leveraging the latent heat of fusion (80 calories of heat released per gram of water freezing). However, if water is applied under dry air conditions, evaporative cooling occurs first, causing bud temperatures to plummet below air temperature.

The true boundary temperature of wet plant tissue equals the wet-bulb temperature ($T_w$):

• If ambient dry-bulb temperature is +2.0°C but relative humidity is 25%, the calculated wet-bulb temperature is -2.2°C.
• Turning on sprinklers when $T_w$ is below the critical bud damage threshold causes water to evaporate rapidly, supercooling the bud and devastating the crop.
• Automated weather stations calculate $T_w$ continuously from air temperature, relative humidity, and barometric pressure, giving growers the exact trigger point to activate sprinklers safely.

3. Dual-Level Monitoring for Frost Fan Automation

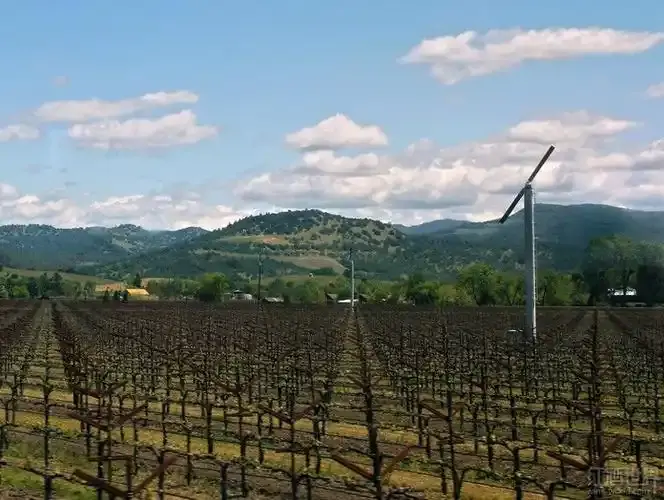

Frost protection wind machines function by pulling warmer air from the inversion ceiling (10 to 15 meters aloft) down into the cold canopy floor:

To operate fans efficiently without wasting diesel or electricity:

• Top-of-Tower Wind & Temp: An ultrasonic anemometer and temperature sensor at 10 meters measure whether an inversion ceiling exists ($Delta T = T_{10m} - T_{2m} ge +1.5^circ ext{C}$).
• Low-Level Ultrasonic Anemometry: If natural horizontal wind speeds exceed 3.5 m/s, the inversion layer is naturally disrupted, and wind machines must be shut down automatically to prevent mechanical blade damage.
• Deploying solid-state instruments like the VT-WDC6E All-in-One Weather Station ensures no mechanical anemometer cups freeze up when temperatures drop below zero.

Conclusion

Replacing manual orchard thermometer checks with automated wet-bulb and thermal inversion tracking eliminates freeze guesswork, protecting crop yields and reducing unnecessary fuel expenditure. Contact the Virtue Instrument team to configure custom frost alert thresholds, solar-powered field poles, and direct SCADA relay controllers.
